Capabilities

CONSORCIO INDUSTRIAL^® specializes in heavy wall, oversized pressure vessels fabrication. No matter the size, we are able to perform turnkey site assembly/construction of all the sub-components to deliver a fully assembled and tested vessel, including all specialized workforce, tools, equipment, NDTs, PWHT, hydro-testing and surface coatings.

Engineering capabilities:

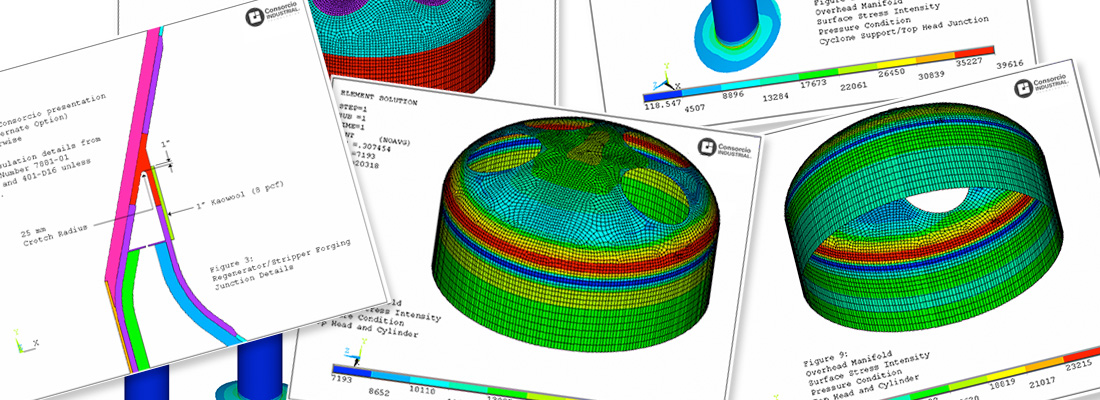

• Finite Element Analysis
• Thermal design for shell & tube heat exchangers (HTRI)
• Mechanical design using Compress or PV Elite
• Fatigue analysis for temperature and pressure cyclic loads
• TEMA for fixed tube sheet and expansion bellows design
• Wind and seismic analysis per international or local requiements
• Design codes
  • ASME Section I
  • ASME Section VIII, Div.1 & Div. 2
  • BS PD:5500
  • TEMA
  • PED

Materials and welding processes

CONSORCIO INDUSTRIAL^® has over 1,000 certified welding procedures on different welding processes as GTAW, SMAW, GMAW, FCAW, ESW, SAW, among others.

• Carbon Steels, P1
• Low Alloys, P3, P4, P5A, P5B, 15E
• Stainless Steels, P6, P7, P8, P10H
• CrMoV Steels

Our shop capabilities include:

• Heavy wall plate rolling, up to 10” thick
• Heavy wall plates forming for heads or spheres sections, as required
• Over 1,000 certified welding procedures, under ASME code
• Weld overlay procedures for numerous filler materials
• Large-scale machining and drilling
• Furnace for equipment post weld heat treatments
• Mechanical test laboratory
• Metallographic laboratory
• Nondestructive testing laboratory
• Positive material identification
• Heavy equipment shipping and logistics

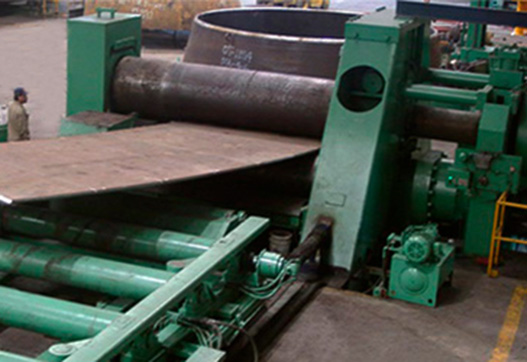

BERTSCH 38 PLATE ROLLING MACHINE WITH FEED TABLE

Our (on-site) field services:

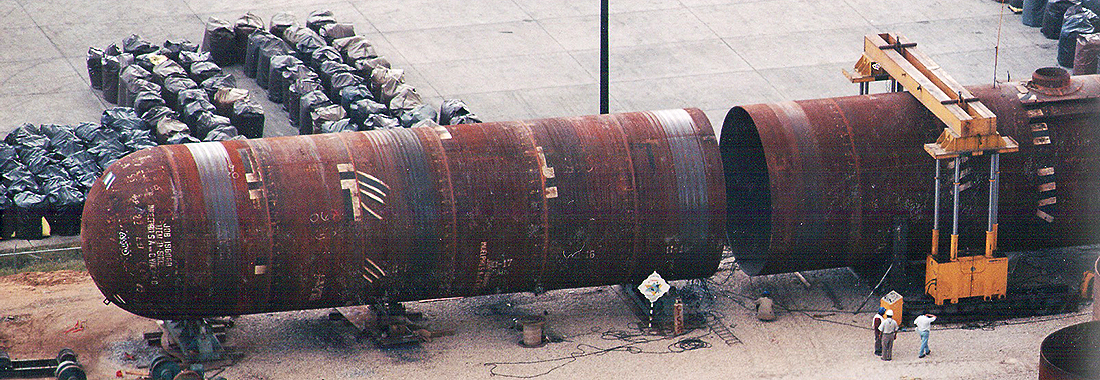

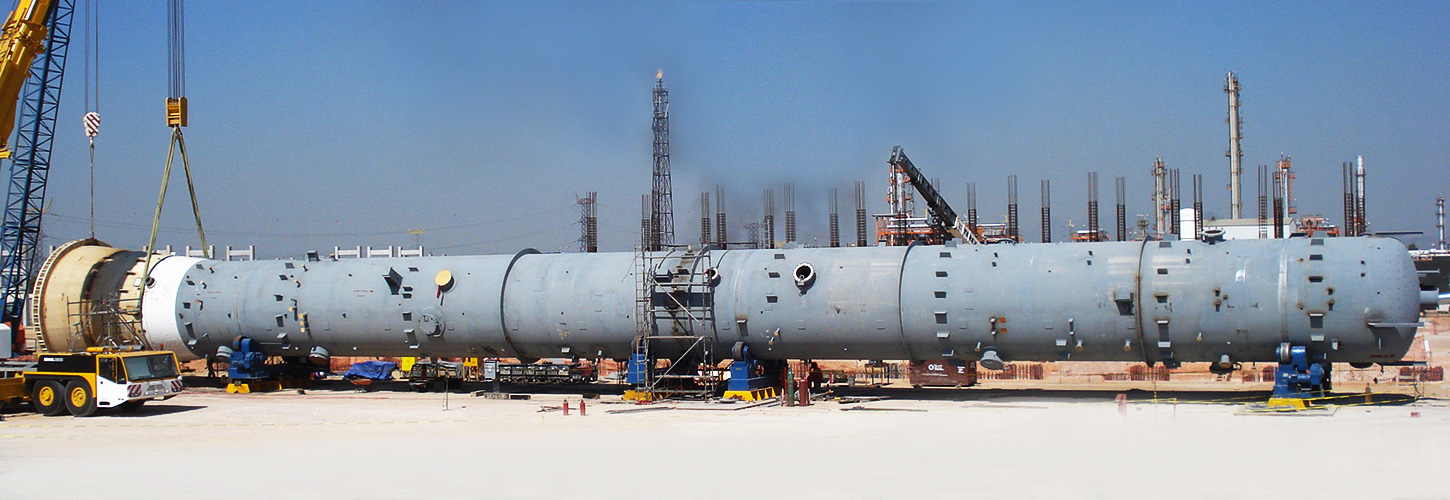

• Turnkey site assembly and construction services
• Field welding
• Field erection and specialized supervision
• Field NDT
• Field PWHT
• Field coating
